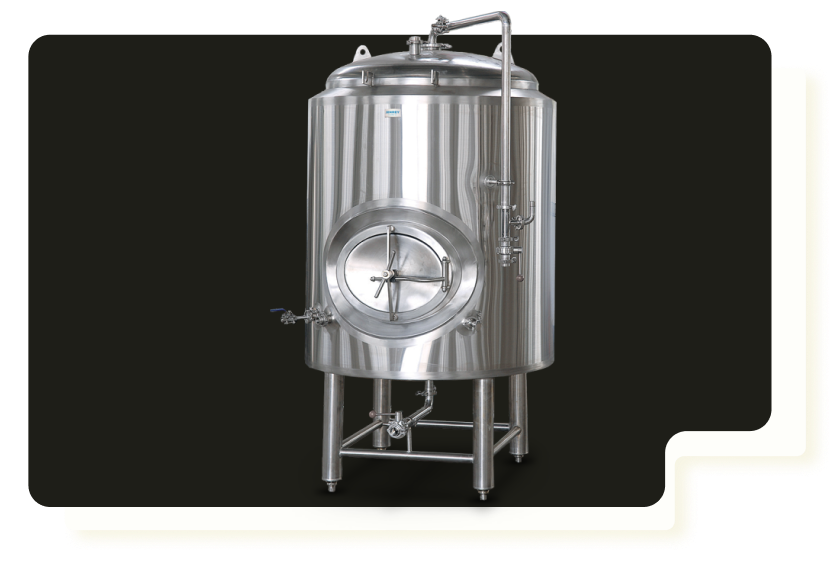

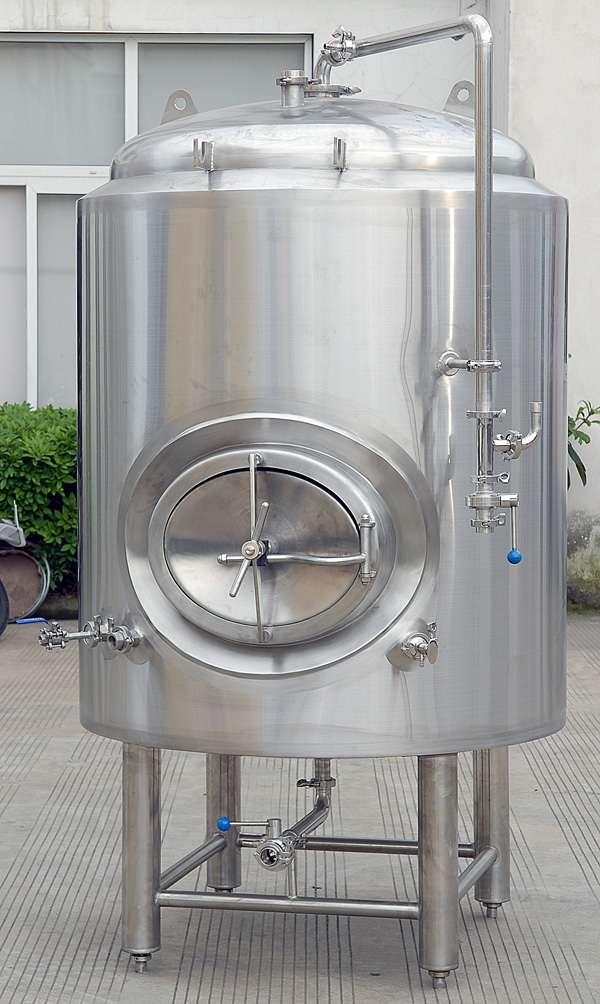

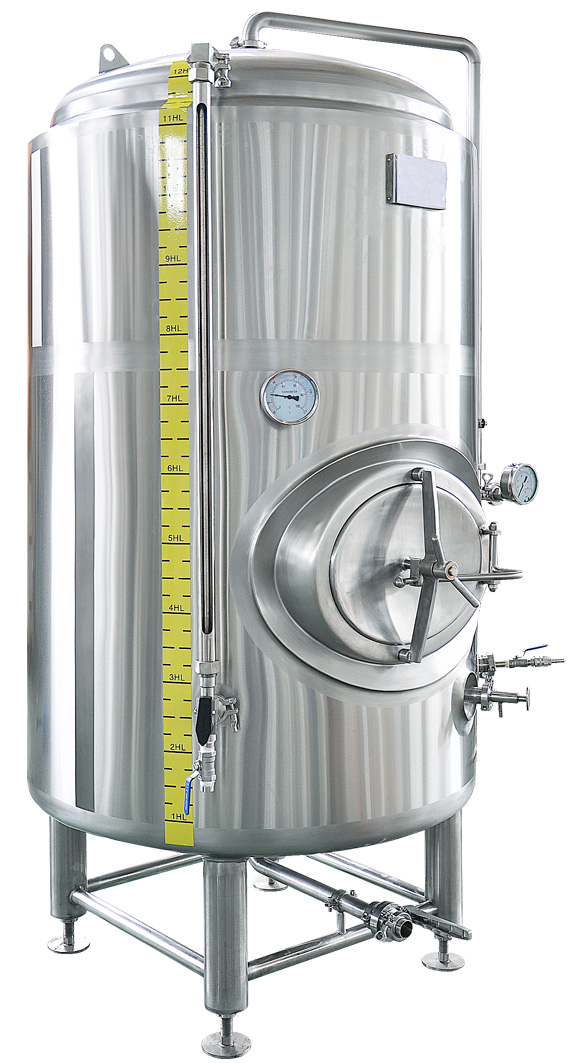

Brite
Tank
All tanks come fitted with glycol jackets for cooling and a minimum 10% head space that provides space for carbonation while minimizing CO2 losses. As well, they are drain sized for low turbulence product transfers and CIP without cavitation.
*Non-jacketed serving tanks are also available
PRODUCT DETAILS
Description
Certified stainless-steel material and sanitary construction is our standard. All tanks are insulated for efficiency and custom fabricated to meet your specific space and height requirements.
Our standard tanks range in sizes from:
– 3BBL to 160BBL
– 3HL to 160HL
*Larger or custom tanks available on request
Technical Data -
Vessel working pressure: 14.5 PSI (tested to 30 PSI)
Jacket working pressure: Tested to 30 PSI
Interior weld finish: stain removed, polished on a regular margin and acid cleaned.
Exterior weld finish: stain removed and brightened on a regular margin.
Side fittings: Glycol jackets, thermowell, sample port, carbonating ferrule and stone
Bottom fittings: 1.5" drain c/w B/F valve
80mm PU foaming Insulation for side and bottom.
Tank placed in a mild steel cradle for shipping.
Minimum additional head space 10%
Shell material 304 2b SS
Cladding material 304 brushed #4 SS
Relief pressure: 15 PSI
4 Legs c/w adjustable Footpads.
Formed dish head - Top and Bottom
Top Fitting
- CIP spray ball on 1.5" side arm with CIP end piece(including gauge, ball valve, quick disconnector)
- 2.5" PVRV
- Manway (top or side available)
- 6” hop addition port available
Side Fittings
- Glycol jackets
- Thermowell
- Sample port
- Carbonating ferrule and stone
